Description

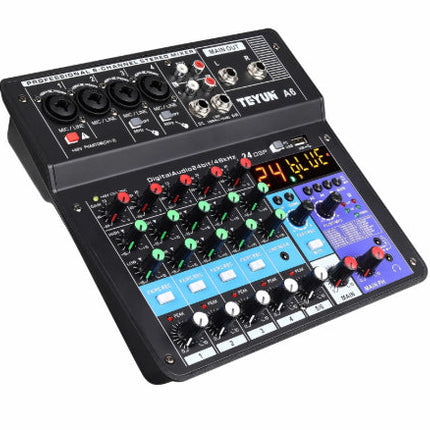

Product information：
Plug: usb

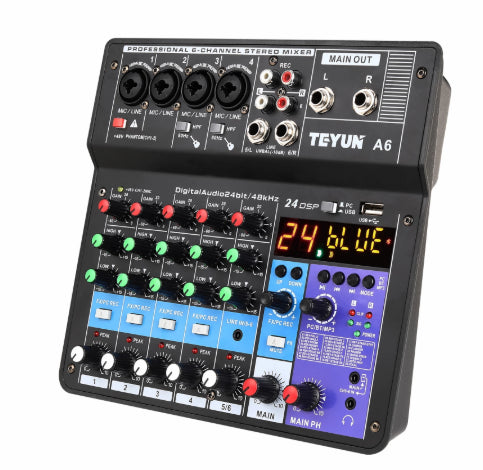

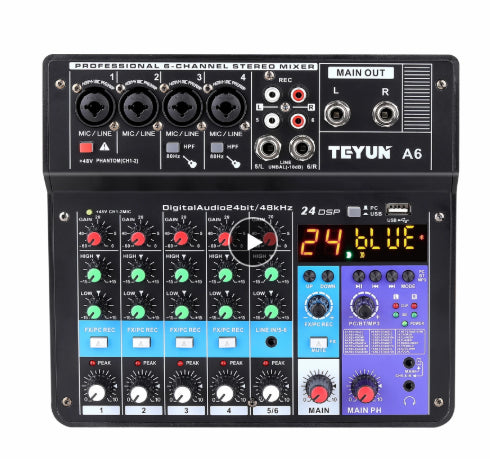

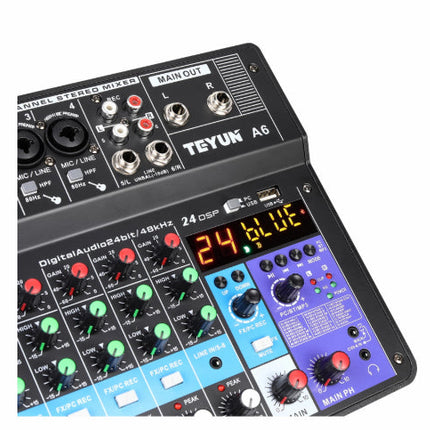

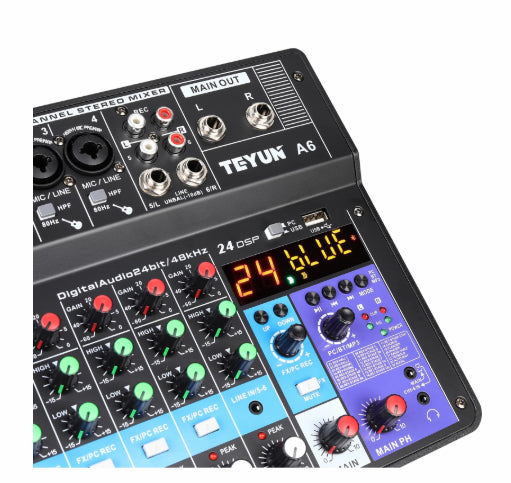

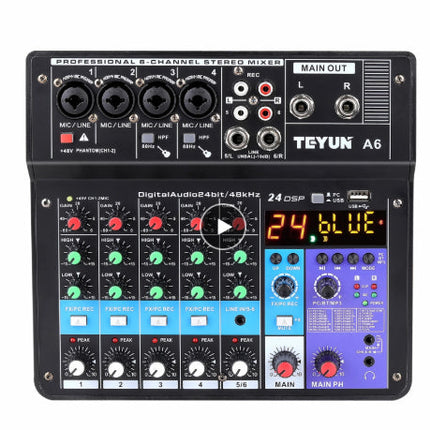

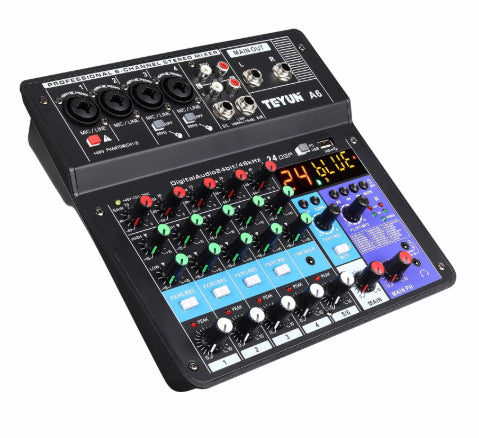

Model: A6
Colour: Black
Material: Metal + ABS
Single product packaging: 27.3*8.2*26CM/ gross weight: 1.15/KG
Carton size: 42.5*28*54*CM/Gross weight: 12.5/KG
Parameter:
Frequency response: 0.05%dB/-2.0dB (20Hz to 20kHz), refer to the rated output level @1kHz, GAIN knob: medium
Total harmonic distortion (THD+N): 0.02%@+10dBu (20Hz to 20kHz), GAIN knob: medium
Noise (20Hz to 20kHz): Residual output noise, -85dBu (STEREO OUT, STEREO LEVE), GAIN knob: small
Crosstalk (1kHz)*2: -83dB
Input/output impedance:
Microphone input: 3kΩ, line input: 10kΩ
Output: 150Ω (balanced) 75Ω (unbalanced)
AES digital signal input and output: 110Ω
Input channels: MIC*4, 2REC, PC, 2LINE, USB, BT, 3.5MINI
Output channel: STEREO OUT: 2, PHONES:1, 3.5MINI MAIN PH OUT:1, 2.GROUP PH:1.3.5MINI LOOP BACK output: 2.REC
Bus: Stereo: 1, GROUP:1.
Input channel function:
HPF(Mono)80Hz,12dB/octave (CH3,4) EQ HIGH
Gain: +15dB/-15dB frequency: 10kHz ramp frequency: EQ LOW
Gain: +15dB/-15dB Frequency: 100kHz Ramp frequency: PEAK LED When the signal after EQ reaches 3dB below the distortion, the LED lights up
LED indication: MAIN STEREO LEVEL knob, the green light is on when the MAIN LEVEL signal reaches -10dB, and the red light is on when the signal reaches 3dB below the distortion
Input and output level: MIC (-60dB) LINE OUTPUT (-40dB) MAX OUT (+12dB)
USB audio: 2IN/2OUT USB audio 2.0 compatible, decoding rate: 48.1kHz, Bit depth: 24-bit
Effect category: independent volume adjustment effect: true digital effect processing
Phantom power supply voltage: support large-diaphragm condenser microphone
Voltage adapter: DC 5V/2.0A standard
24 types of DSP：
1. Simulate reverberation in small spaces such as concert halls
2. Simulate the reverberation of the acoustic environment of a small space (auditorium)
3. Simulate the reverberation of large spaces such as theaters
4. Echo of the Valley
Electronic synthesis sound
5. Electronic Mix (A flat major)
6. Electronic Mix (A major)
7. Electronic Mix (B-flat major)
8. Electronic Mix (B major)
9. Electronic Mix (C major)
10. Electronic Mix (D-flat major)
11. Electronic Mix (D major)
12. Electronic Mix (E-flat major)
13. Electronic Mix (E major)
14. Electronic Mix (F major)
15. Electronic Mix (G flat major)
16. Electronic Mix (G major)
17. Electronic mixing (semitone scale)
Synthetic sound effects
18. Female Voice
19. Uncle Tone Flanger
20. Children's Voice
21. Childish Echo
22. Magic sound (male)
23. Magic Sound Echo (Male)
24. Original sound
Size Information
Packing list:
6-channel mixer
