Description
Features :

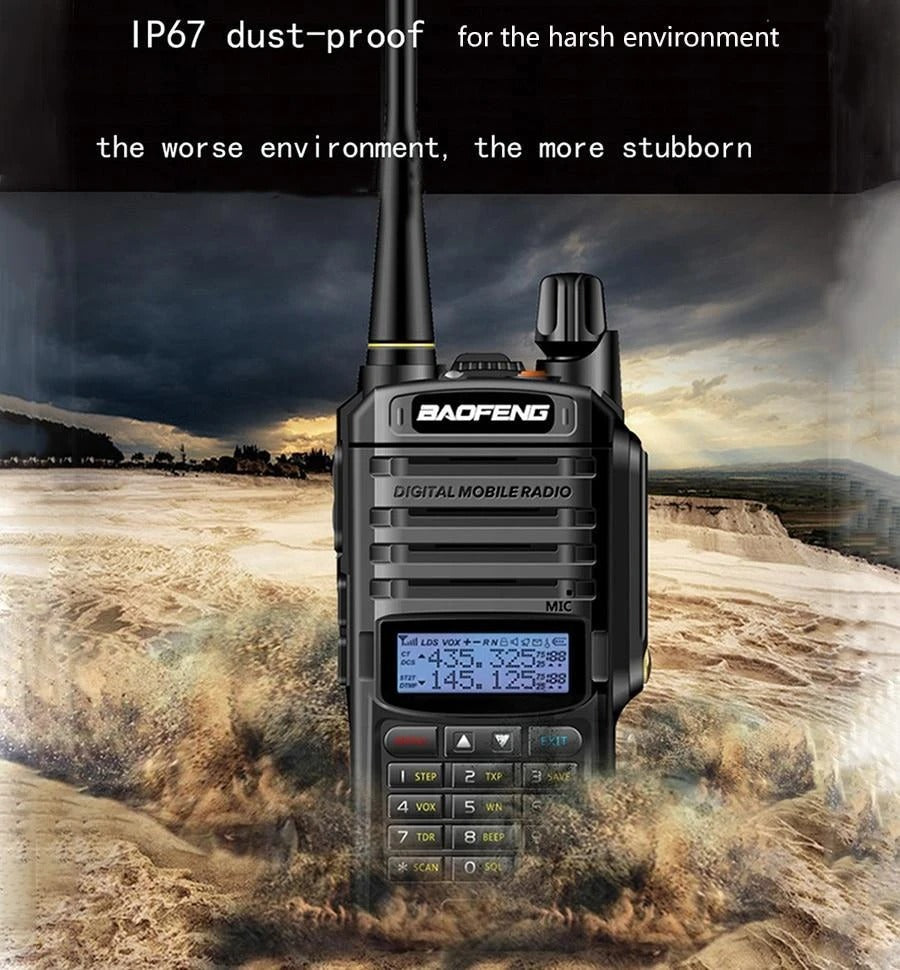

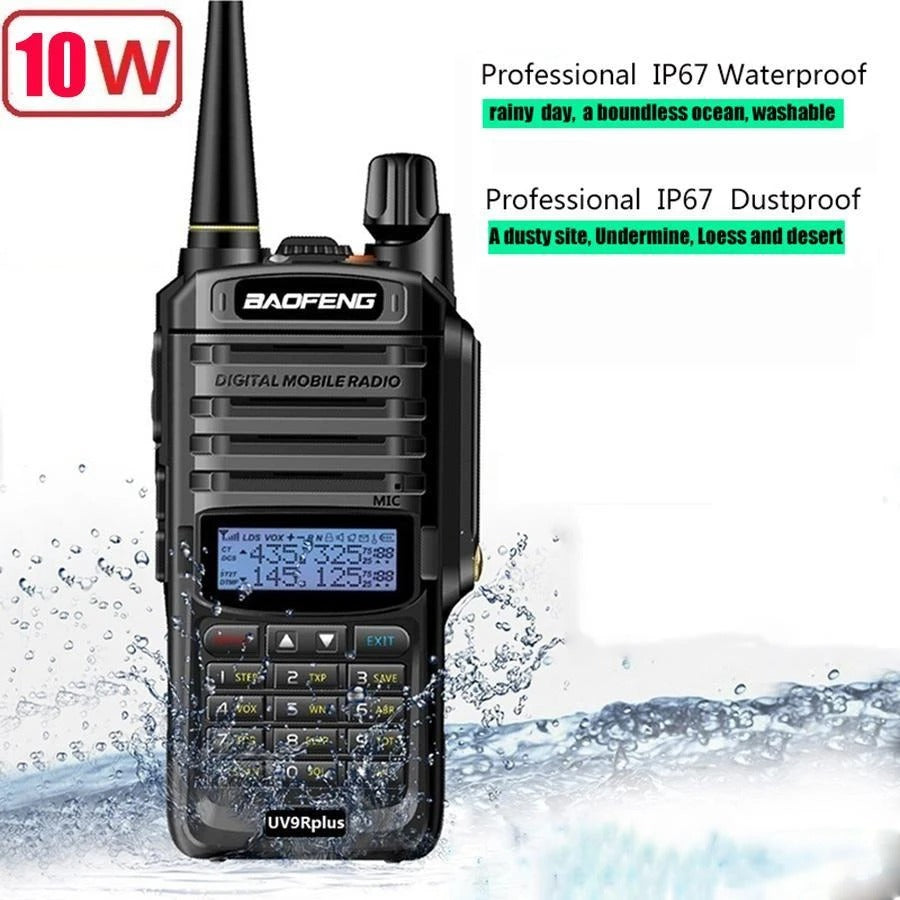

1) IP68 waterproof and dustproof (Not diving)
2) Relay Forwarding Confirmed (1750 HZ)
3) Dual Band, Dual Display and Dual Standby
4) High &Low Power Switchover
5) Battery Saving
6) V OX Function
7) Wide/Narrow Band Selection
8) Auto-Back Light
9) Dual Band Standby
10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes
12) Voice Prompt
13) ANI Code
14) PC or Manual Program
15) DTMF Code
16) PTT-ID
17) ATUO Keypad Lock
18) Busy Channel Lock Function
19) Low Battery Warning
20) Emergency Alarm
21) Priory Scanning Function
22) U/V Cross Band Dual Watch
Specification :
| General |
| Frequency Range |
VHF:136-174MHz UHF400-520MHz |
| Channel Capacity |
128 |
| Channel Spacing |
25KHz/12.5KHz |
| Antenna Impedance |
50Ω |
| Microphone Impedance |
600Ω |
| Operating Voltage |
7.4V DC±15% |
| Frequency Stability |
±2.5ppm |
| Battery |
8000mAh ( Virtual mark)
|
| Compatible With American Military Standard(Mil-STD-810C/D/E) |
| Transmitter(EIA-RS 316B STANDARD) |
| RF Power Output |
15W |
| Modulation Type |
FM Radio (65.0MHz-108.0MHz) |
| Modulation Sensitivity |
<15µV |
| Modulation Distortion |
≤3% |
| Max Freq Deviation |
<5KHz |
| Occupied Bandwidth |
≤16KHz |
| Modulation Feature |
±3dB |
| Spurious Radiation |
≤7.5μW |
| Adjacent Channel Power |
≤-65dB |
| Receiver |
| Sensitivity(12db SINAD) |
≤0.15μ(12dB S/N) |
| Squelch Sensitivity |
≤0.1μV |
| Audio Power output |
1W/16Ω |
| Audio Respond |
-6 |
| Operation Bandwidth |
>5KHz |
| Co-channel Rejection |
≥-8dB |
| Blocking |
≥85dB |
| Adjacent Channel Selectivity |
≥65dB |
| Standby Current |
60mA,15mA |
| Spurious Rejection |
≥60dB |
| Intermodulation Resistance |
≥60dB |
Package includeds :
1 x Baofeng BF-UV9R Plus Radio
1 x Antenna
1 x Li-ion battery pack
1 x Belt clip
1 x The sling
1 x Power Charger
1 x User manual

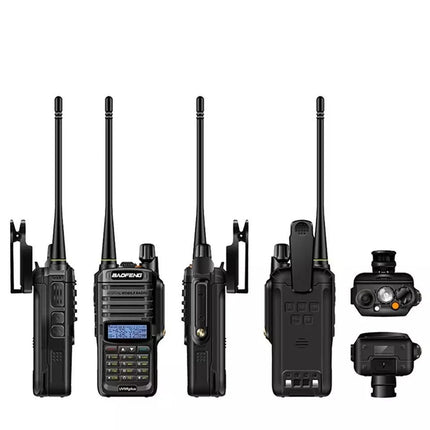

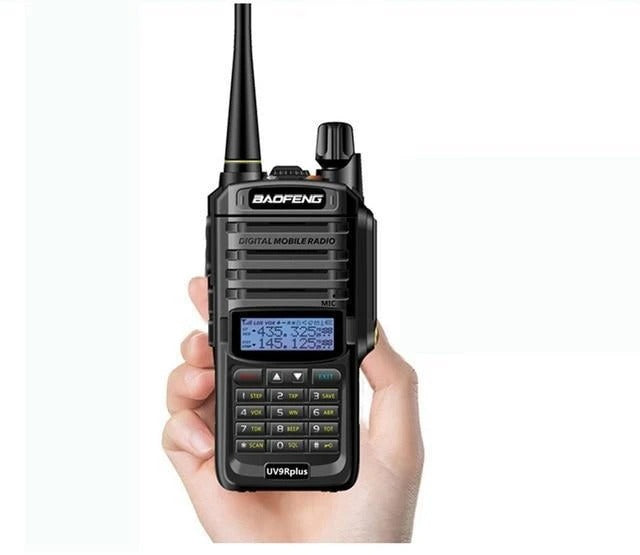

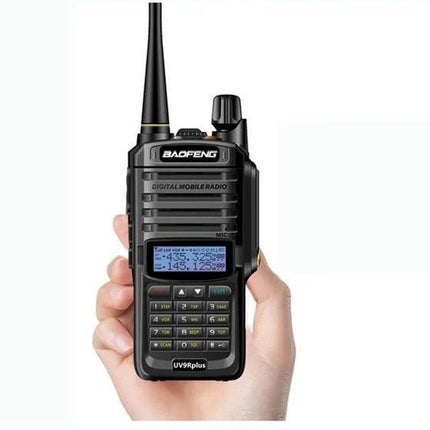

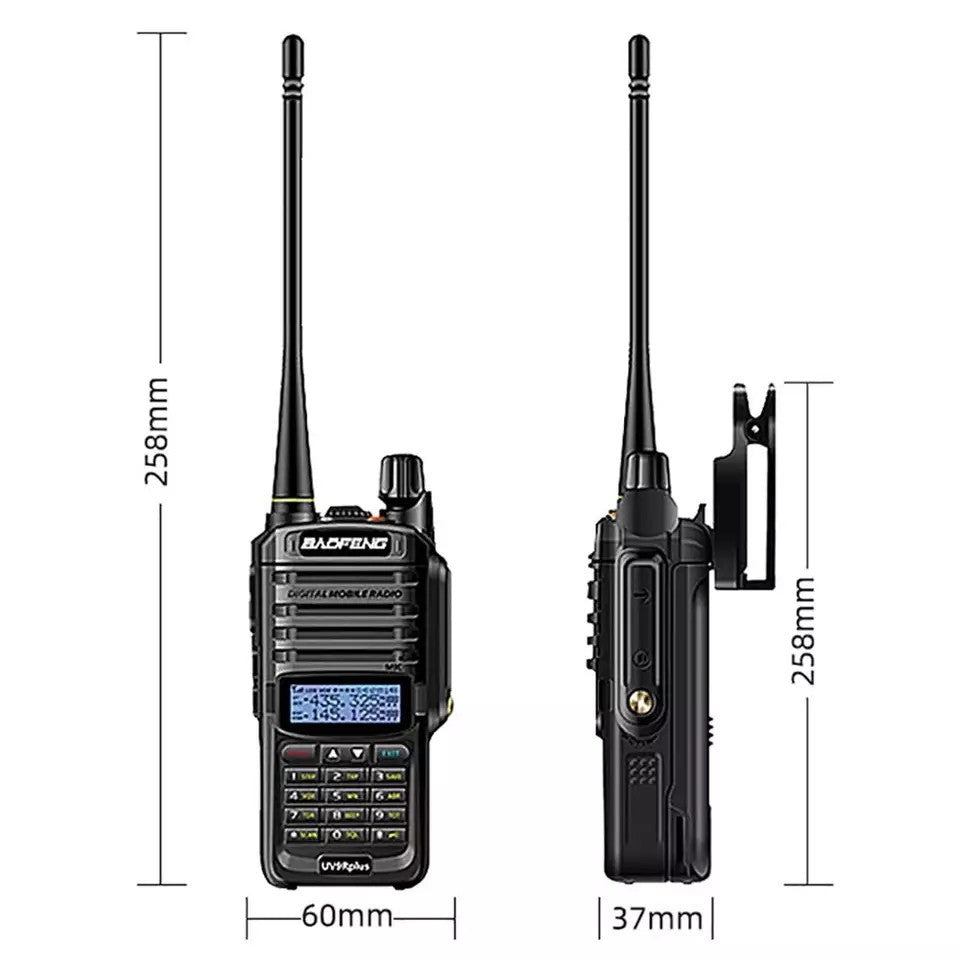

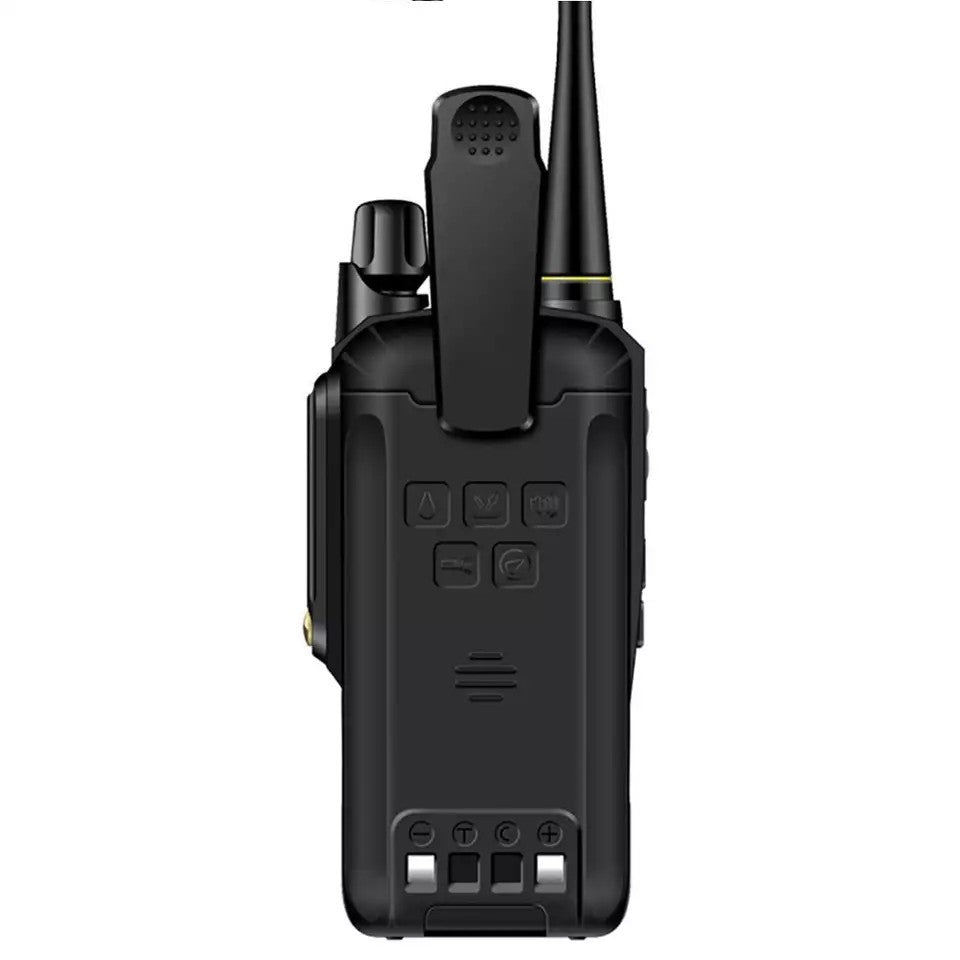

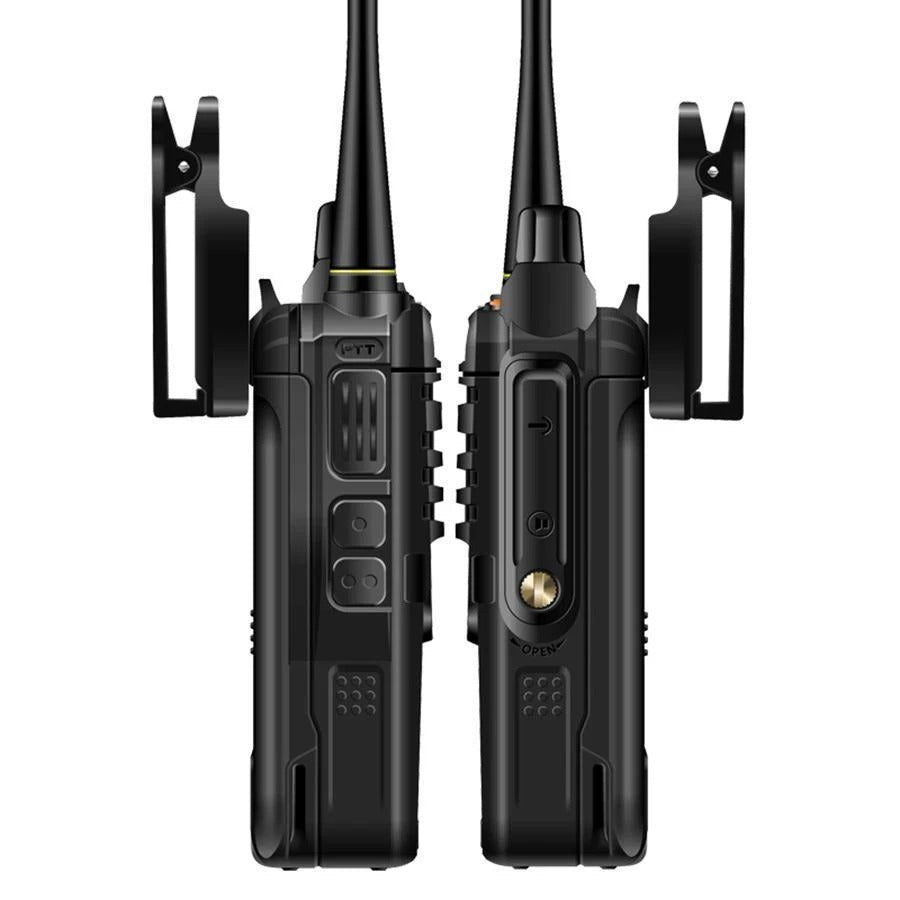

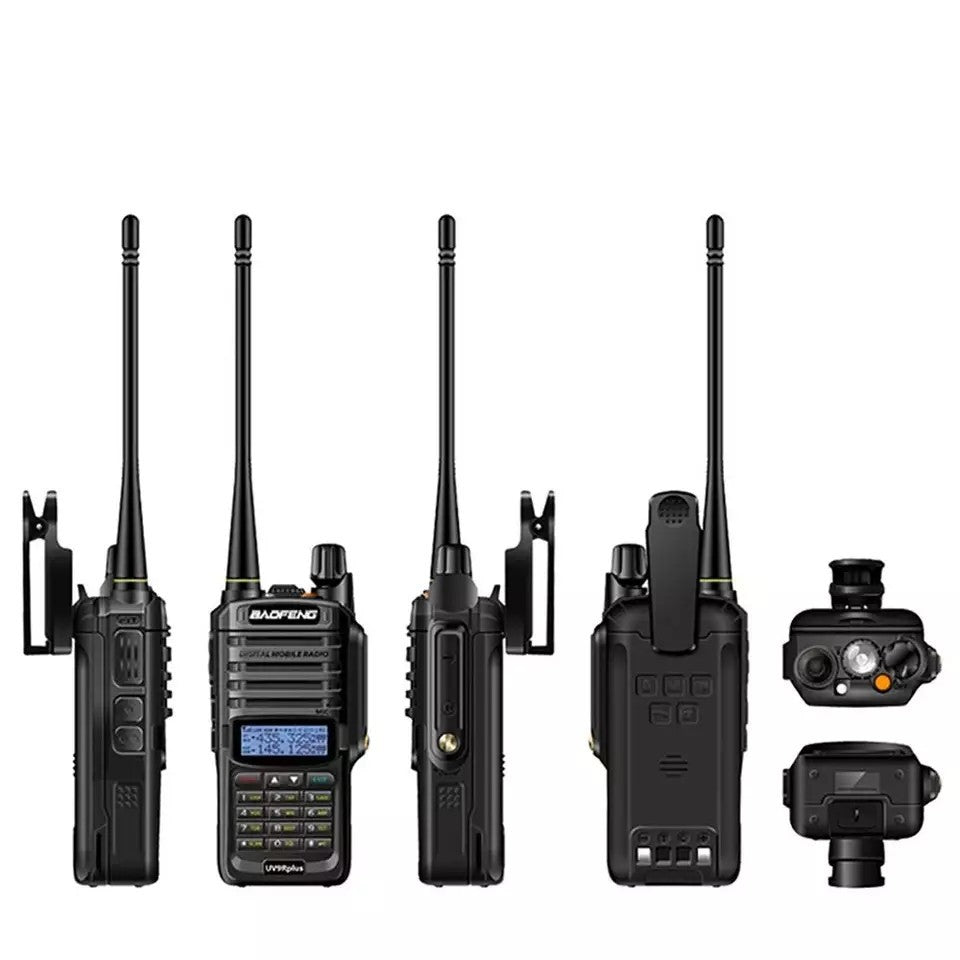

Details pictures :
